Presentation

Product range	HT118A
Product type	Digital Measurement Device

Sale package

Pack	Blister
Content	Digital Measurement Device
Product status	New

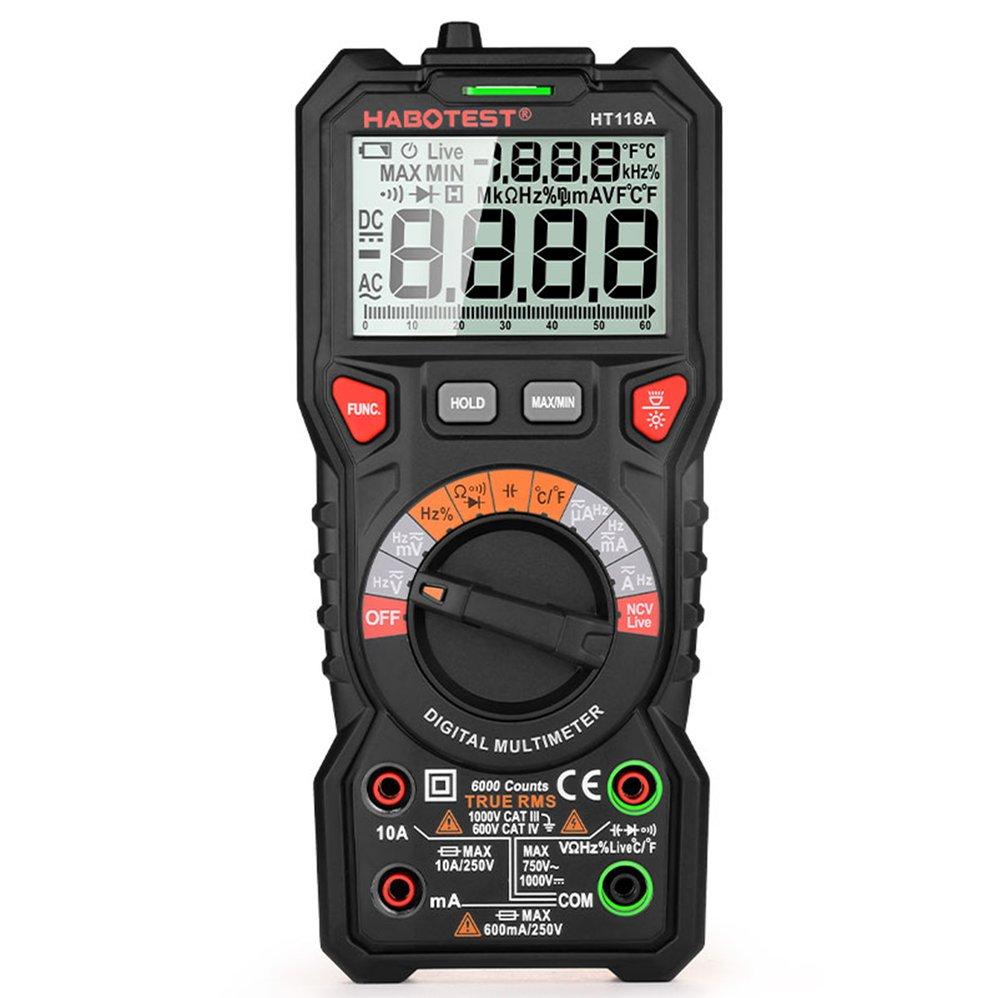

Habotest HT118A Digital Measuring Device

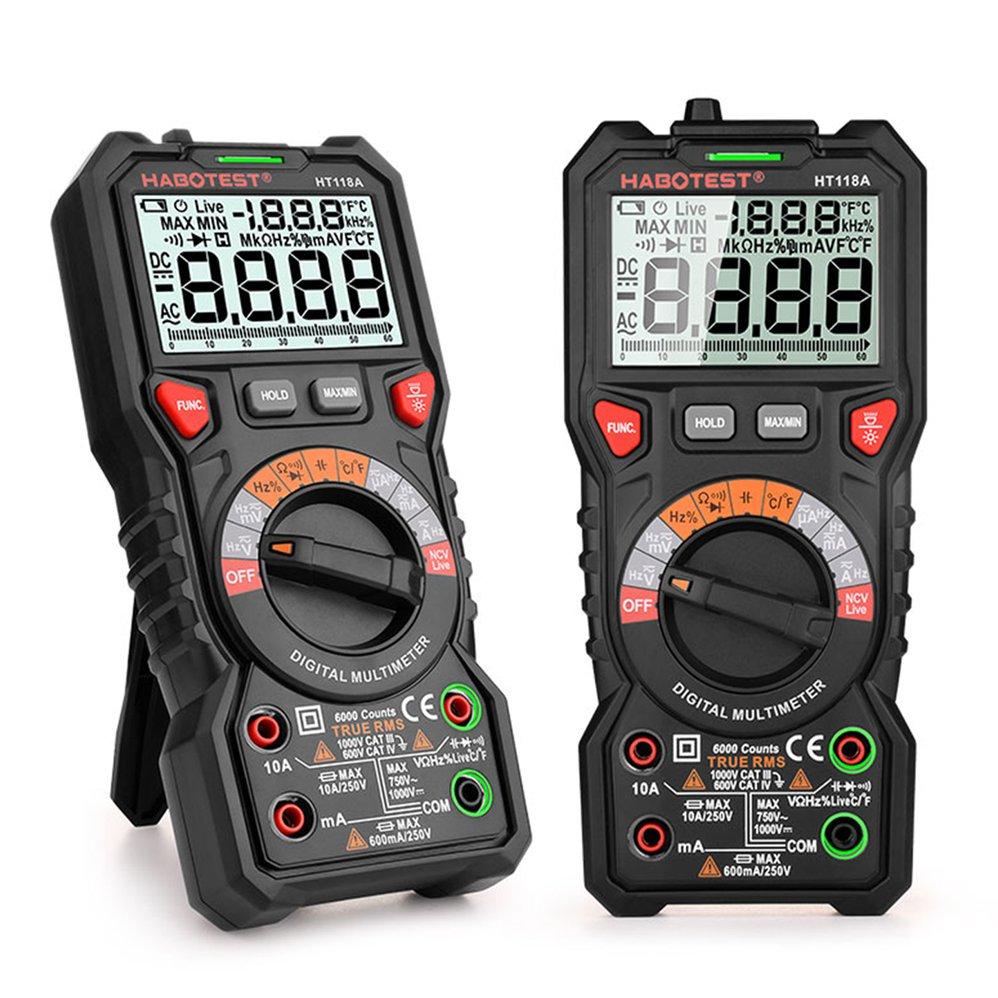

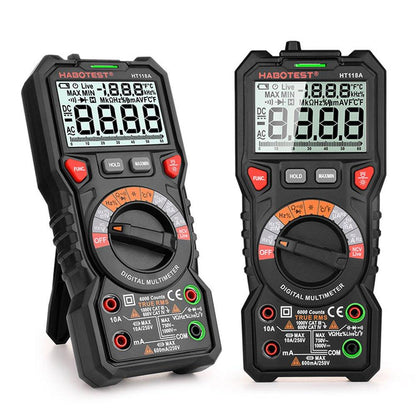

The Habotest universal multimeter is an indispensable tool that provides precise measurement of parameters such as voltage, continuity, or temperature, among others.

The backlit screen makes it easy to use.

The built-in flashlight allows you to work even in dark rooms,

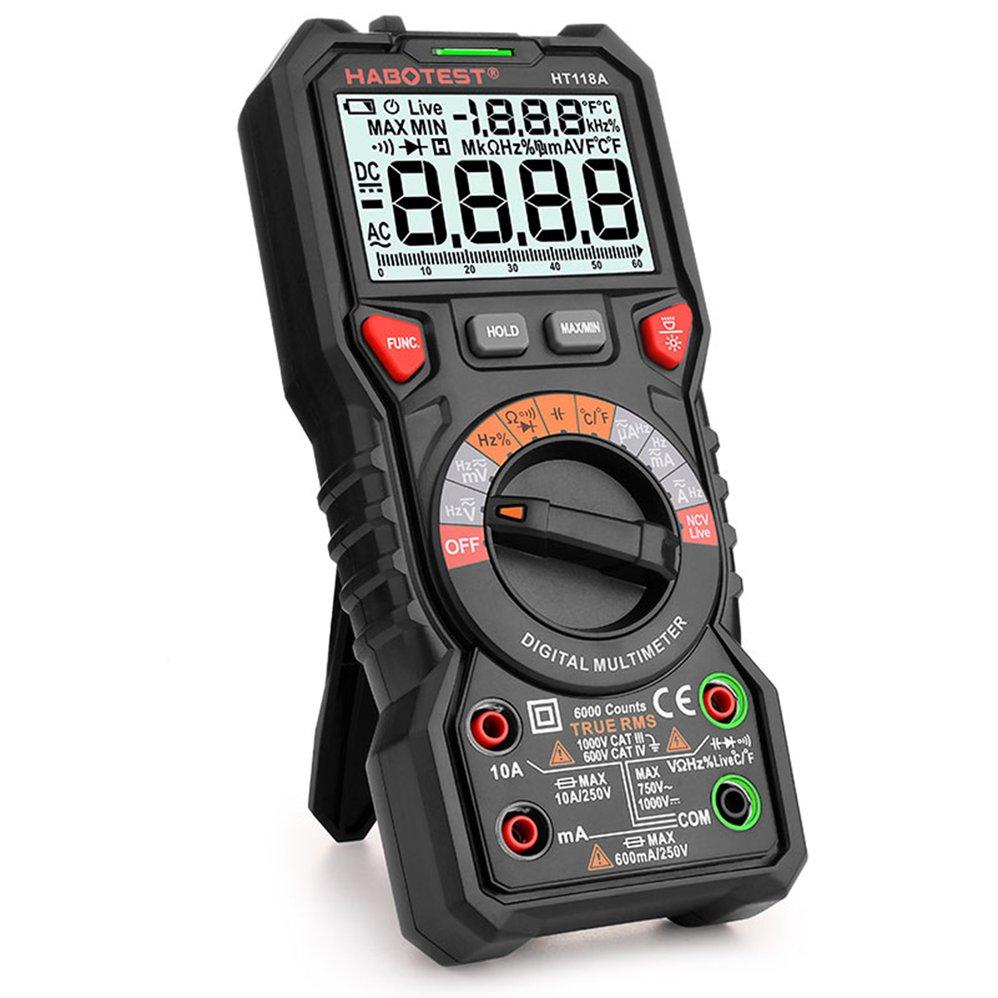

and with a special stand, you can safely place the device on a flat surface.

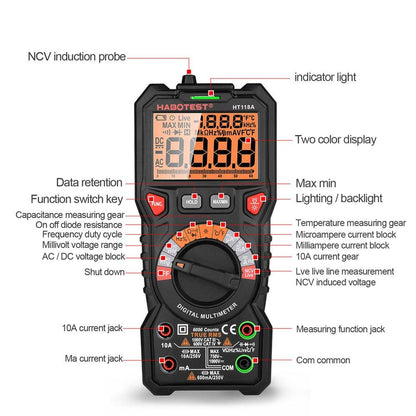

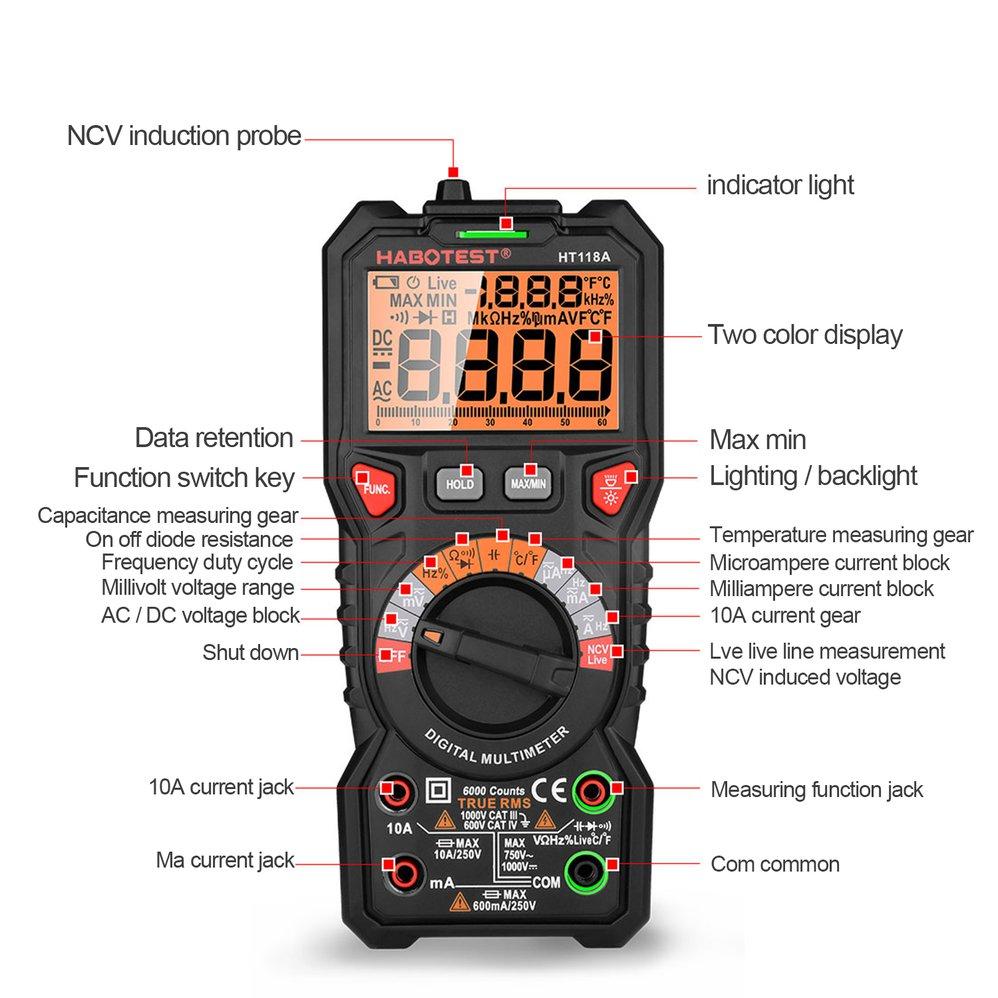

The product is also equipped with NCV sensors for contactless voltage measurement and supports automatic range selection.

habotest-ht118a-digital-measuring-device-with-flashlight-lcd

Simple Operation

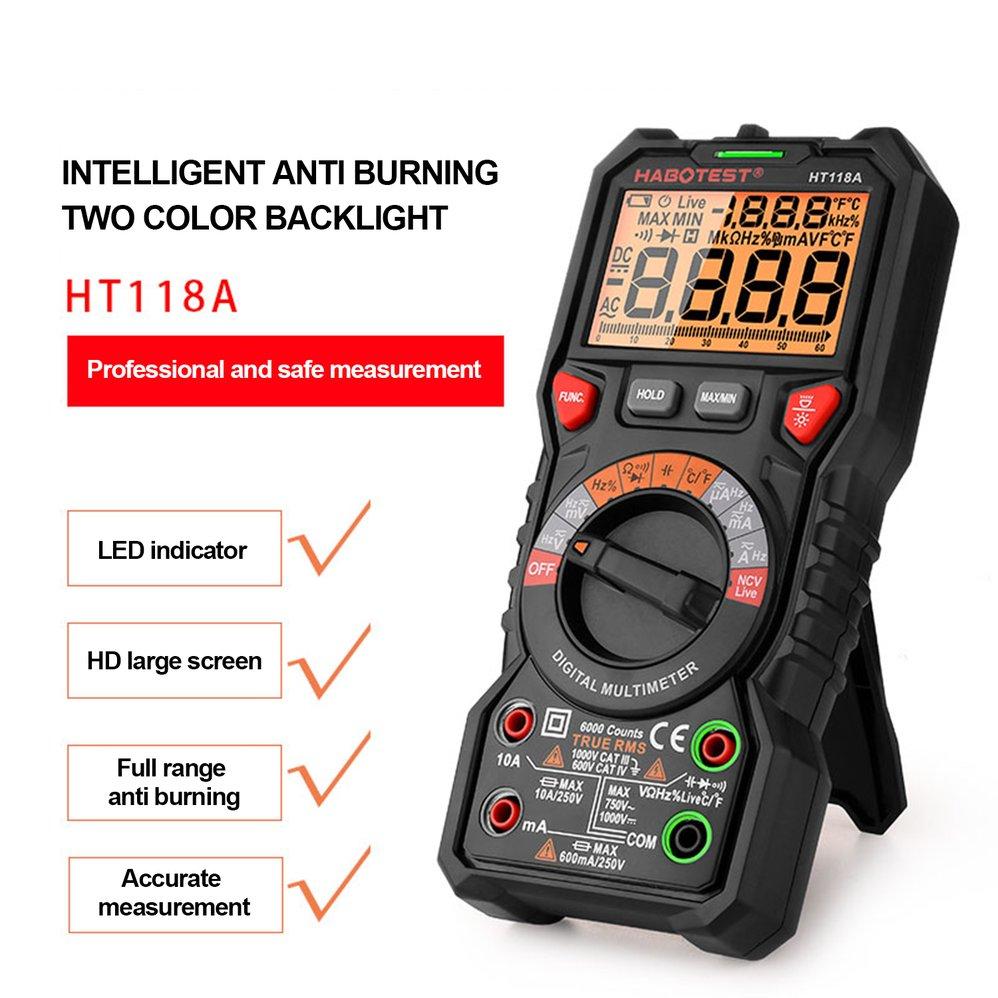

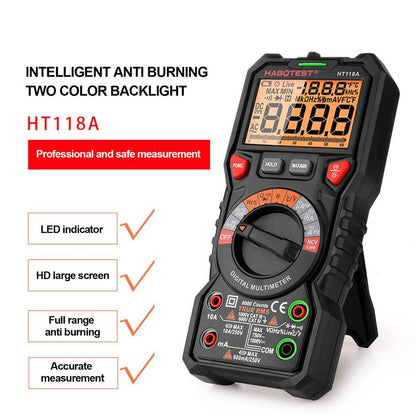

Measurement results are displayed on a clear LCD screen, which has dual backlighting.

If the voltage value exceeds 80 V or the current value exceeds 1 A, the screen color will change to orange.

Moreover, the meter has an LED indicator for the jack input port.

Additional Functions

The Habotest HT118A also supports other useful functions, such as max/min testing and diode testing, for example.

You can also check the true RMS value with it. It also allows you to store data.

Additionally, automatic range selection ensures optimal measurement in any situation.

Long Battery Life

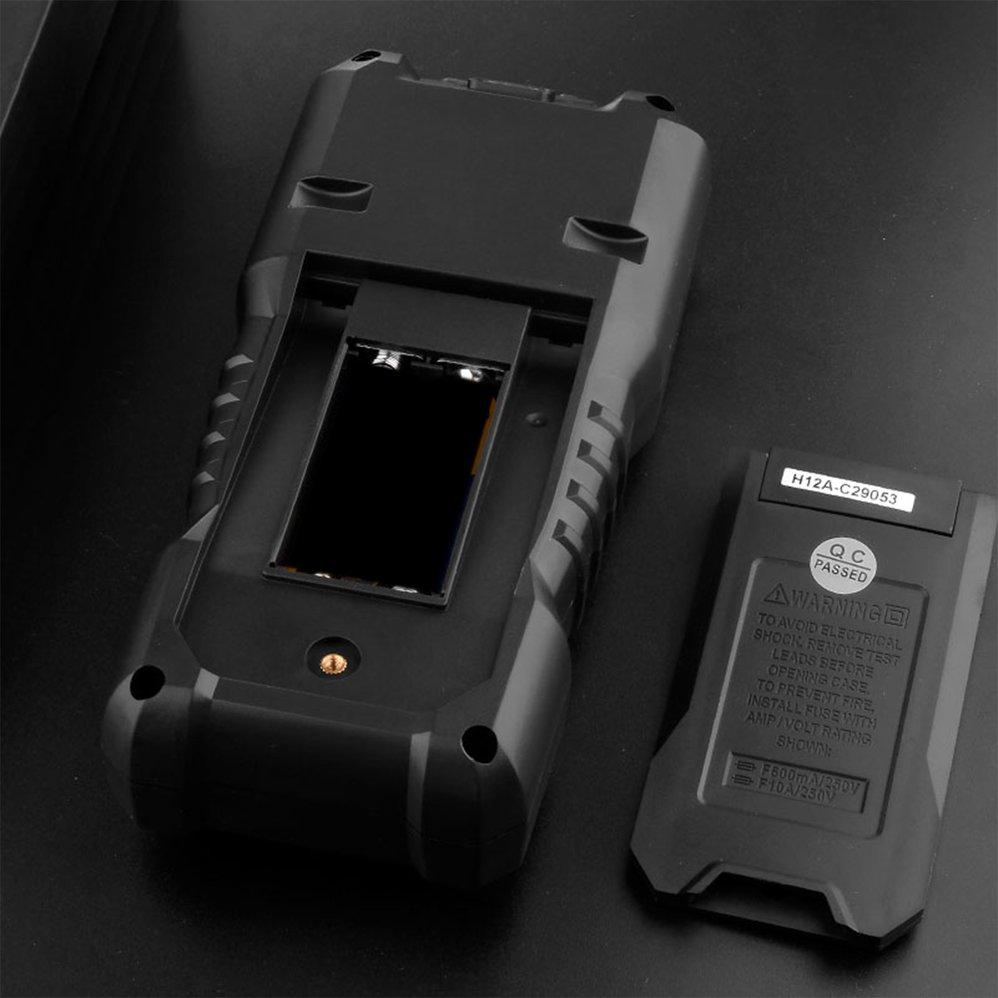

The device requires 2 AA batteries to power it.

Moreover, you don't have to worry about premature discharge.

Even if you forget to turn it off, it will automatically stop working after 15 minutes of inactivity.

Specifications:

- DC Voltage (range + accuracy)

600 mV/6 V/60 V/600 V/1000 V ±(0.5%+3)

- AC Voltage (range + accuracy)

600 mV/6/60/600/750 V ±(1.0%+5)

- DC Current (range + accuracy)

600 µA/6000 µA/60 mA/600 mA ±(0.8%+3);

6/10 A ±(1.2%+3)

60 µA/60 mA/600 mA ±(0.8%+3);

- AC Current (range + accuracy)

600 µA/6000 µA/60 mA/600 mA ±(1.0%+3);

6 A/10 A ±(1.5%+3)

- Resistance (range + accuracy)

600 ohms/6 kohms/60 kohms/600 kohms/6 Mohms/60 Mohms ±(0.8%+3)

600 ohms/6 kohms/60 kohms/600 kohms/6 Mohms/±(600 kohms/6 Mohms/±(0.8%+3) %+3)

- Capacitance (range + accuracy)

10 nF/100 nF/1 µF/10 µF/100 µF/1 mF/10 mF ±(4.0%+3);

100 mF ±(5.0%+5)

- Frequency (range + accuracy)

10 Hz/100 Hz/1 kHz/10 kHz/100 kHz/1 MHz/10 MHz ±(1.0%+3)

- Duty Cycle (range + accuracy)

1-99% ±(1.0%+2)

- Temperature (range + accuracy)

-40°C to 1000°C ±(1.0%+3);

-40°F to 1832°F ±(1.0%+3)

- Safety

EN61010-1.-2-030; EN61010-2-033;

EN61326-1 CAT III 1000 V. CAT IV 600 V EN61010-1.-2-030;
